Bypass Oil Cleaners
and Filters

NOTE ABOUT SERVICE CAPACITY

1 x B100 unit will maintain a cleanliness standard of ISO 16/14/11 NAS 5 up to a maximum tank capacity of 1400L. For larger tanks use multiple units.

B100 BYPASS OIL CLEANER

SPECIFICATIONS

​

  • Part Number: B100

  • Flow Rate: 3L / minute

  • Supply Pressure: 2 – 220 Bar (30 – 3300 psi)

  • Pressure Control: Self regulating orifice

  • Fluid Supply: System pressure

  • Fluid Return: Return at atmospheric pressure

  • Mounting Bracket: Multi-directional

  • Relief Pressure: 5.5 Bar / 80 psi

  • Pressure Gauge: 0 – 16 Bar

  • Weight: 5Kg

  • Oil Sampling Point: Test 20

FEATURES

​

  • Filter Element: B100E

  • Capacity Particles: 400g submicron

  • Capacity Water: 1000mL

  • Dry Weight: 750g

  • Filter Media: Cellulose Fibre

  • Size: 115mm x 178mm diameter

  • Cleanliness: ISO 16/14/11 NAS 5 (or better)


MB100 BYPASS OIL CLEANER

SPECIFICATIONS

​

  • Part Number: MB100

  • Flow Rate: 3L / minute

  • Pressure Control: Pressure Relief  Valve

  • Fluid Supply: System pressure

  • Fluid Return: Return at atmospheric pressure

  • Mounting Bracket: Multi-directional

  • Relief Pressure: 5.5 Bar / 80 psi

  • Pressure Gauge: 0 – 16 Bar

  • Weight: 14Kg

  • Oil Sampling Point: Test 20

FEATURES

​

  • Filter Element: B100E

  • Capacity Particles: 400g submicron

  • Capacity Water: 1000mL

  • Dry Weight: 750g

  • Filter Media: Cellulose Fibre

  • Size: 115mm x 178mm diameter

  • Cleanliness: ISO 16/14/11 NAS 5 (or better)

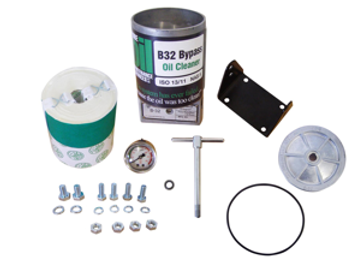

B32 BYPASS OIL CLEANER

SPECIFICATIONS

​

  • Part Number: B32

  • Flow Rate: 1.5L / minute

  • Supply Pressure: 2 – 220 Bar (30 – 3300 psi)

  • Pressure Control: Self regulating orifice

  • Fluid Supply: System pressure

  • Fluid Return: Return at atmospheric pressure

  • Mounting Bracket: Multi-directional

  • Relief Pressure: 5.5 Bar / 80 psi

  • Pressure Gauge: 0 – 10 Bar

  • Weight: 3Kg

  • Oil Sampling Point: Test 20

FEATURES

​

  • Filter Element: B32E

  • Capacity Particles: 150g submicron

  • Capacity Water: 300mL

  • Dry Weight: 240g

  • Filter Media: Cellulose Fibre

  • Size: 115mm x 105mm diameter

  • Cleanliness: ISO 16/14/11 NAS 5 (or better)

NOTE ABOUT SERVICE CAPACITY

1 x B32 unit will maintain a cleanliness standard of ISO 16/14/11 NAS 5 up to a maximum tank capacity of 400L. For larger tanks use B100 or MB100 units
